Size & Dimension

8' - 10' Ceiling Height

Rooms

1 Bed, 1 Bath

Starting Price

$165,000 CAD

Solace puts big-home comfort into a small-home footprint. The bright, open living area flows into a full kitchen with quartz counters and Germany made stainless-steel appliances, so cooking still feels easy and fun. A serene bedroom, wall-to-wall wardrobe, and in-suite laundry complete the experience of true premium-style living.

BUILDING ENVELOPE & STRUCTURE

HSS Steel Frame Structure

  • HSS steel post & beam system.
  • Light gauge steel system as non-structural in-fill.


Wall and Roof System

  • R30 walls – 4’’ of polyurethane spray foam and 2’’ polystyrene rigid exterior insulation.
  • R38 roof – 6’’ of polyurethane spray foam and 3’’ polystyrene rigid exterior insulation.
  • House wrap system complete with rain screen system.
  • Standing seam metal roof at 2% slope


Floor System

  • R38 floor – 6’’ of polyurethane spray foam and 3’’ polystyrene rigid exterior insulation.
  • 5/8’’ tongue and groove plywood sub-floor.
  • 6mm floating vinyl plank flooring.
Metal frame structure of a building under construction inside a factory with a red crane.
A model of a house and a model of a house on a white background.
A model of a house and a model of a house on a white background.

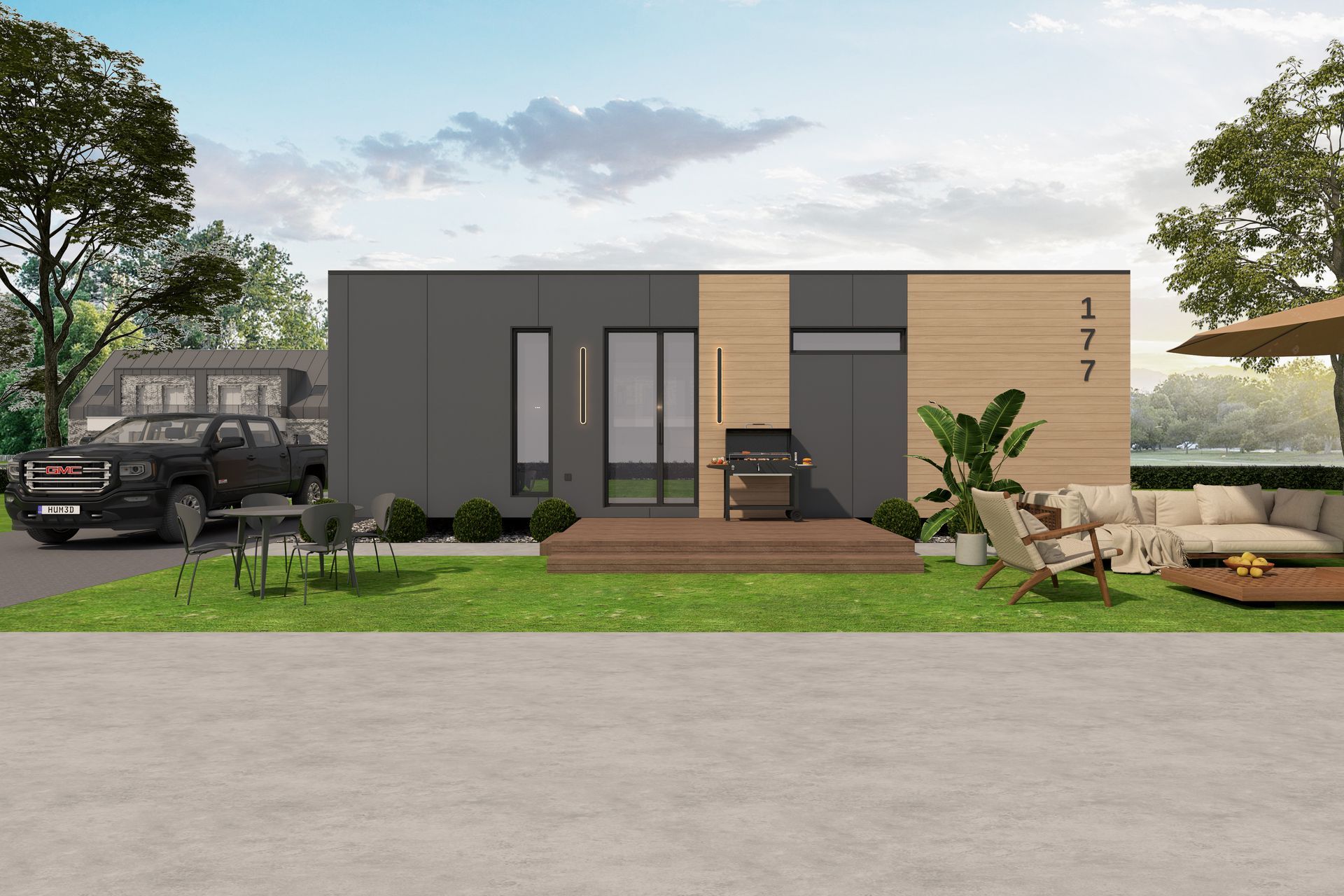

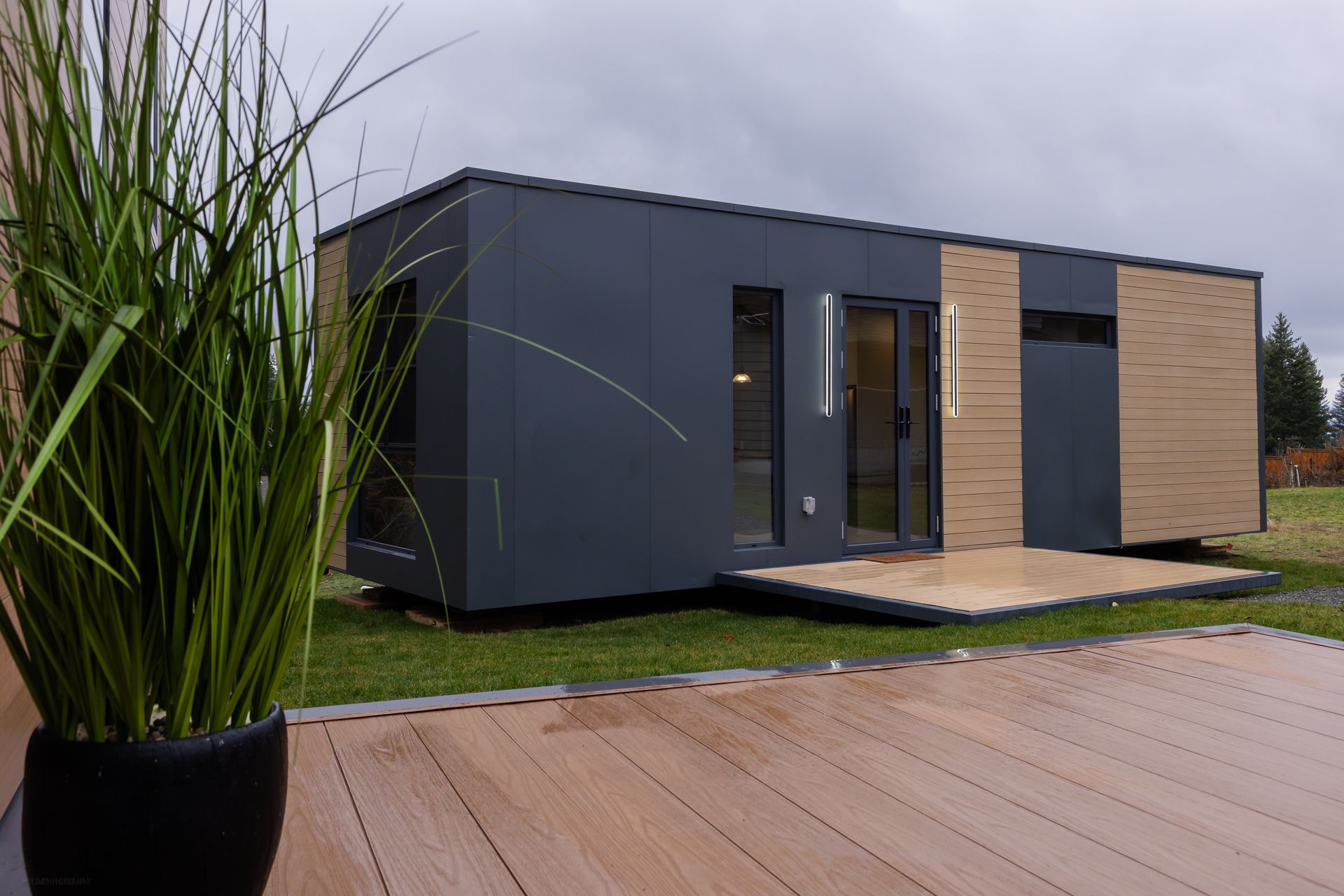

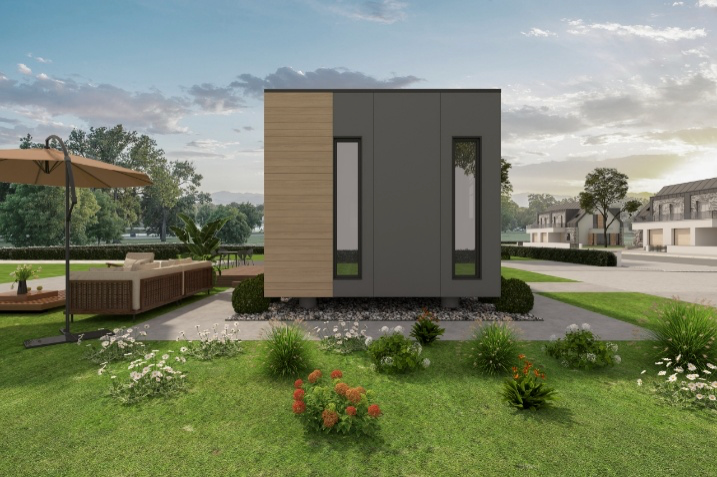

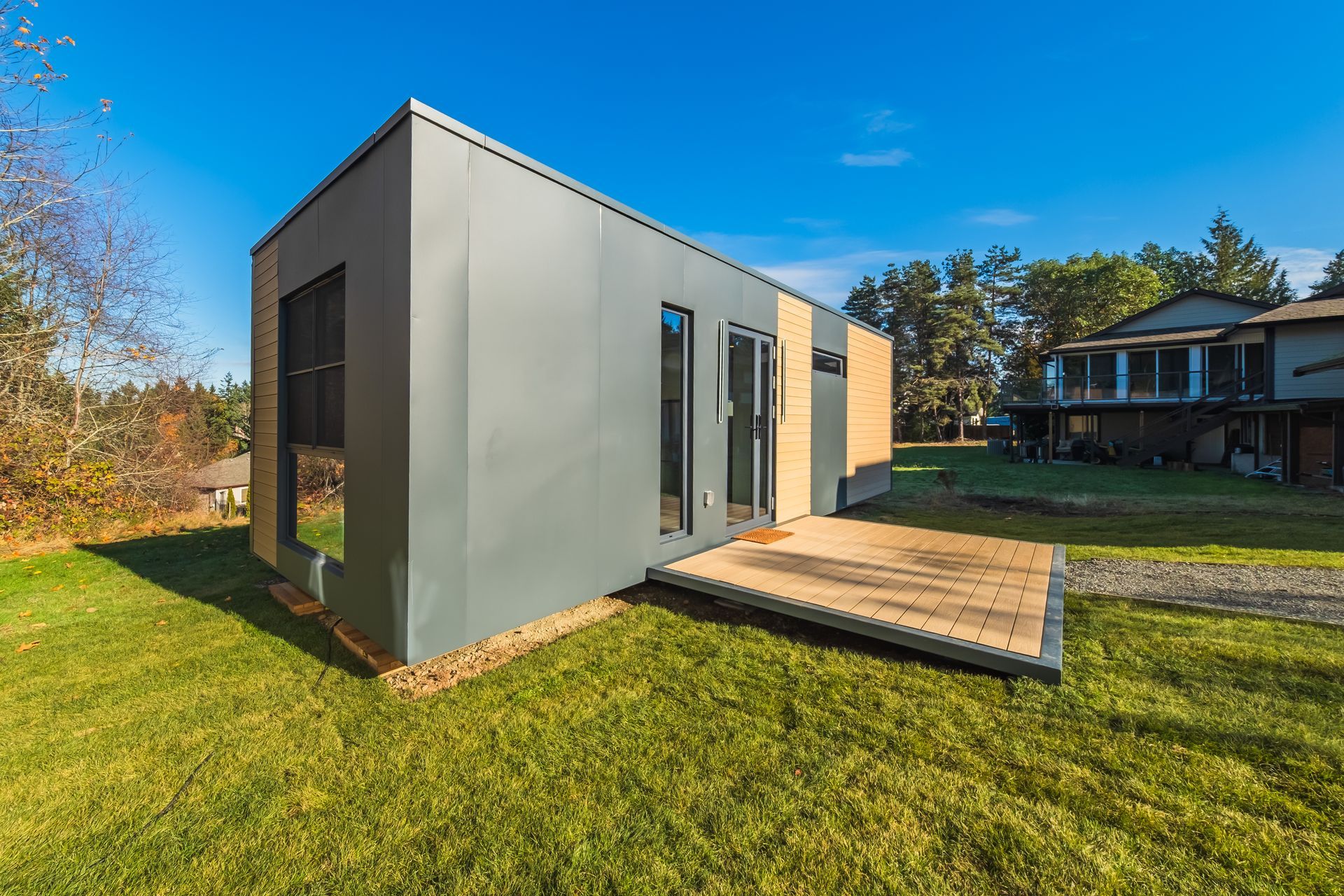

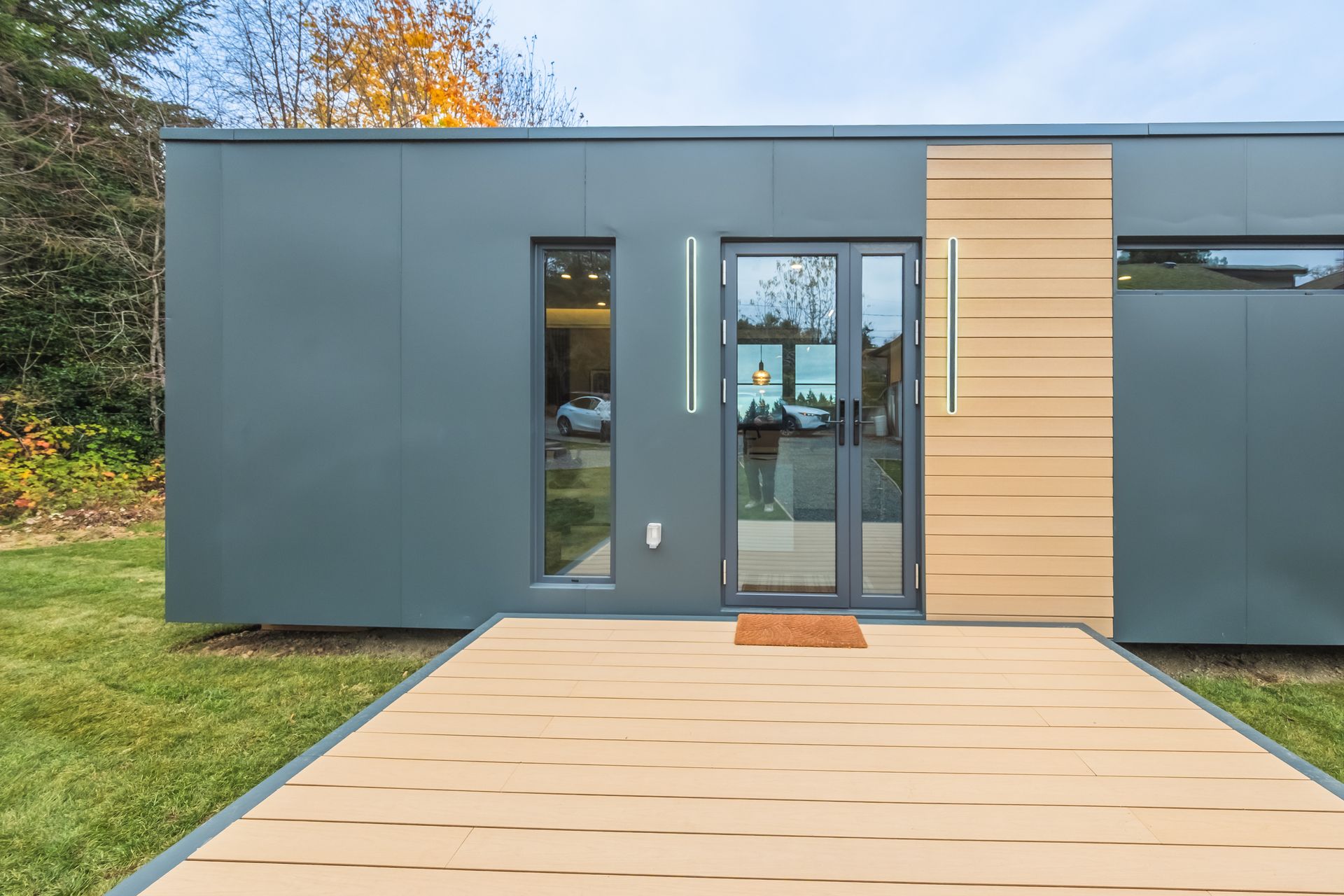

EXTERIOR FINISHES

14ga (2mm) Aluminum Panel Siding and Sloped roof

  • Color: Magnesium grey
  • More colour options will be available in the future.


Wood Accent

  • Vinyl planks with wood colour and anti-UV coating.
  • Colour: Cork
  • More colour options will be available in the future.


Exterior Doors and Windows

  • Black aluminum double-open entry door with a smart keyless entry system.
  • Thermal bridged aluminum windows.
  • Low E triple-pane glass.
  • Solid insulated door with keyless entry system for the mechanical room.


Exterior Lighting

  • Either side of the main entrance door.
  • One above the mechanical room.


Add-Ons

  • “Fog” features for the suite entry door.
  • One-way privacy films on all windows for increased privacy.

Interior Finishes

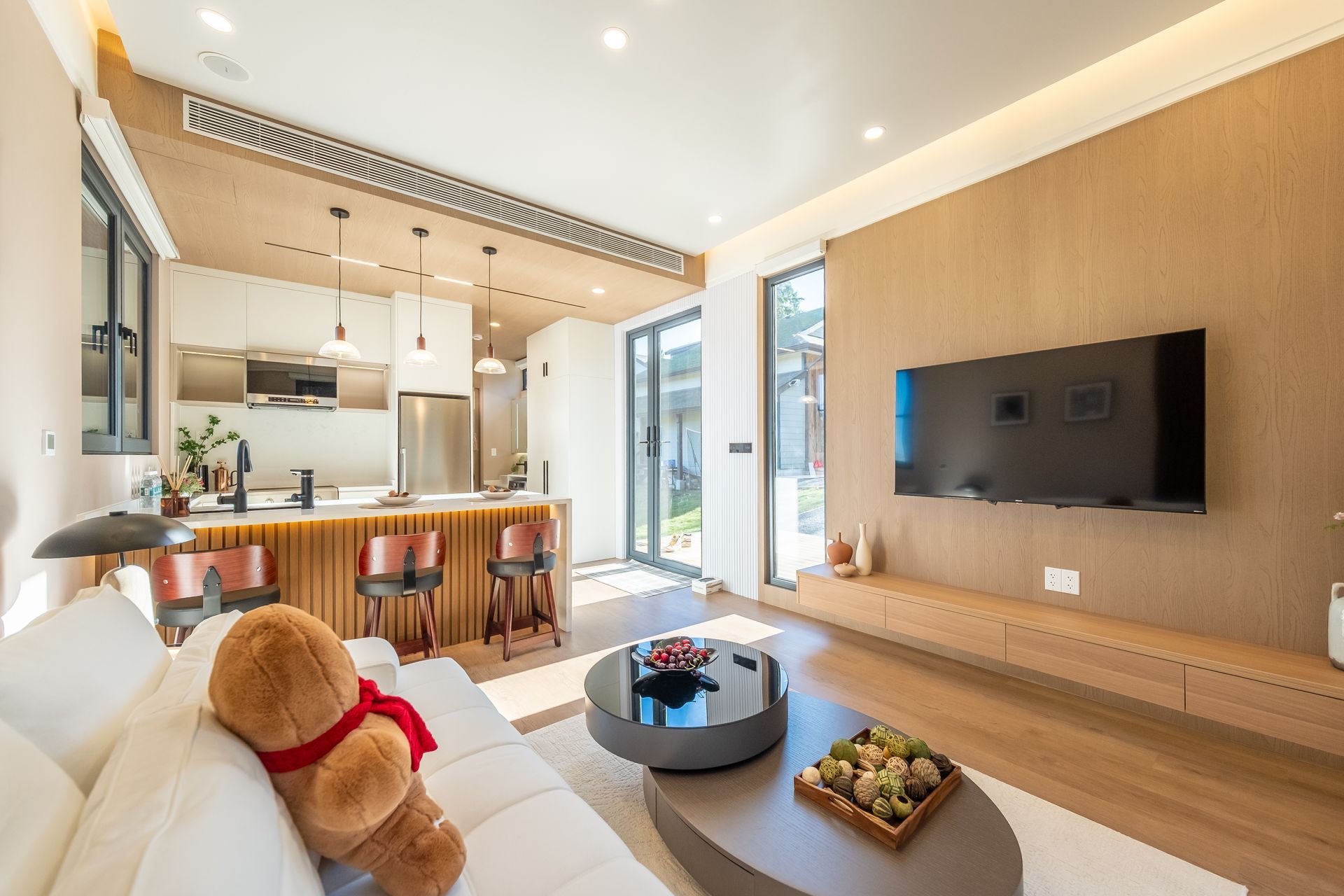

Living Room

  • Vinyl bamboo composite finish wall boards.
  • Aluminum ceiling panels.
  • 6mm floating SPC plank floorings.
  • All LED ambient lighting throughout the room.
  • Built in media console for Solace model living room.
  • All walls and ceilings finish throughout the room.
  • Manual blinds for all the windows.
  • Mechanical switches for all the lighting control.
  • Standard plugs throughout the room and plugs with USB ports at selected locations.
A living room with wooden shelves and a flat screen tv
A living room with wooden shelves and a flat screen tv
A living room with a couch and a coffee table

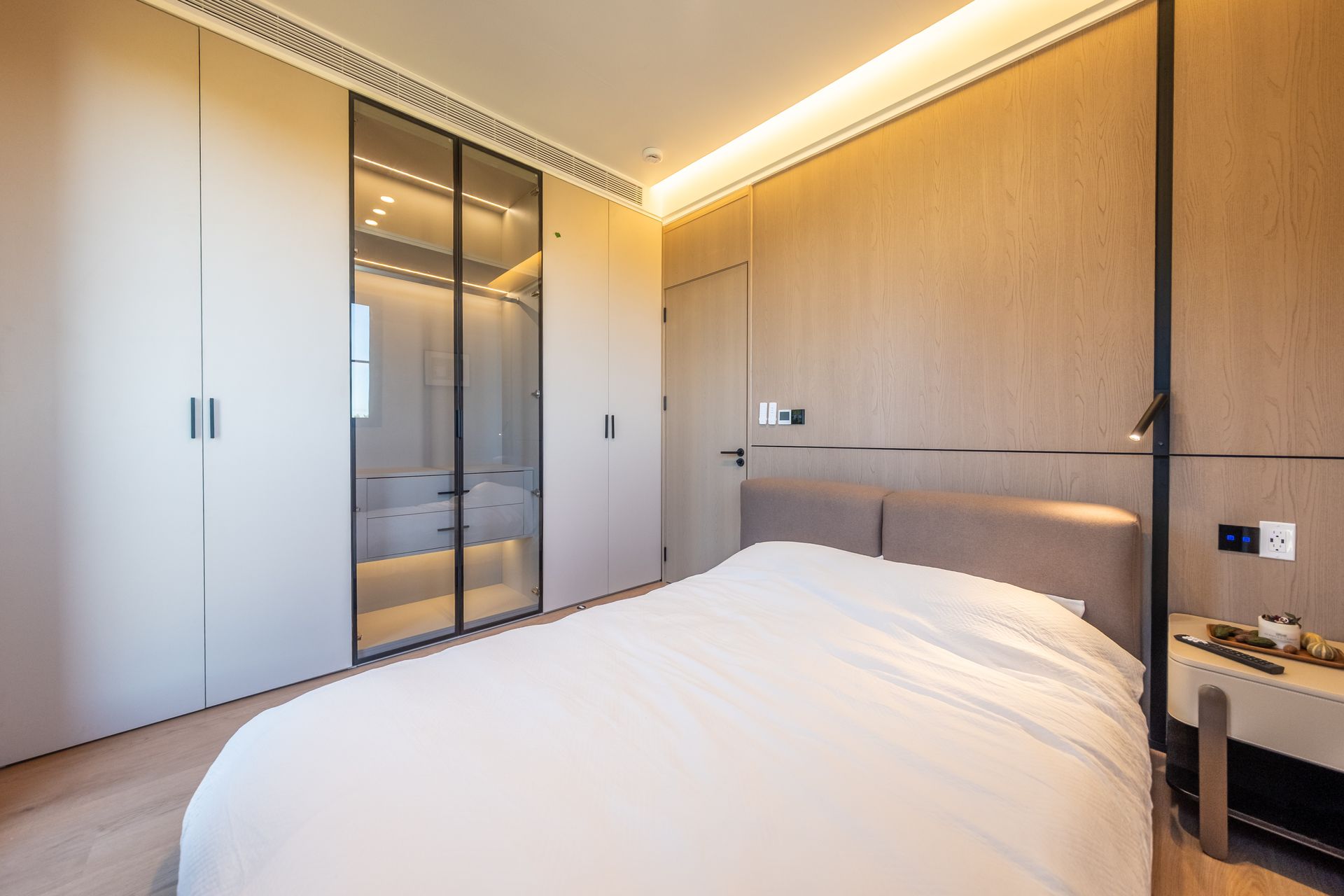

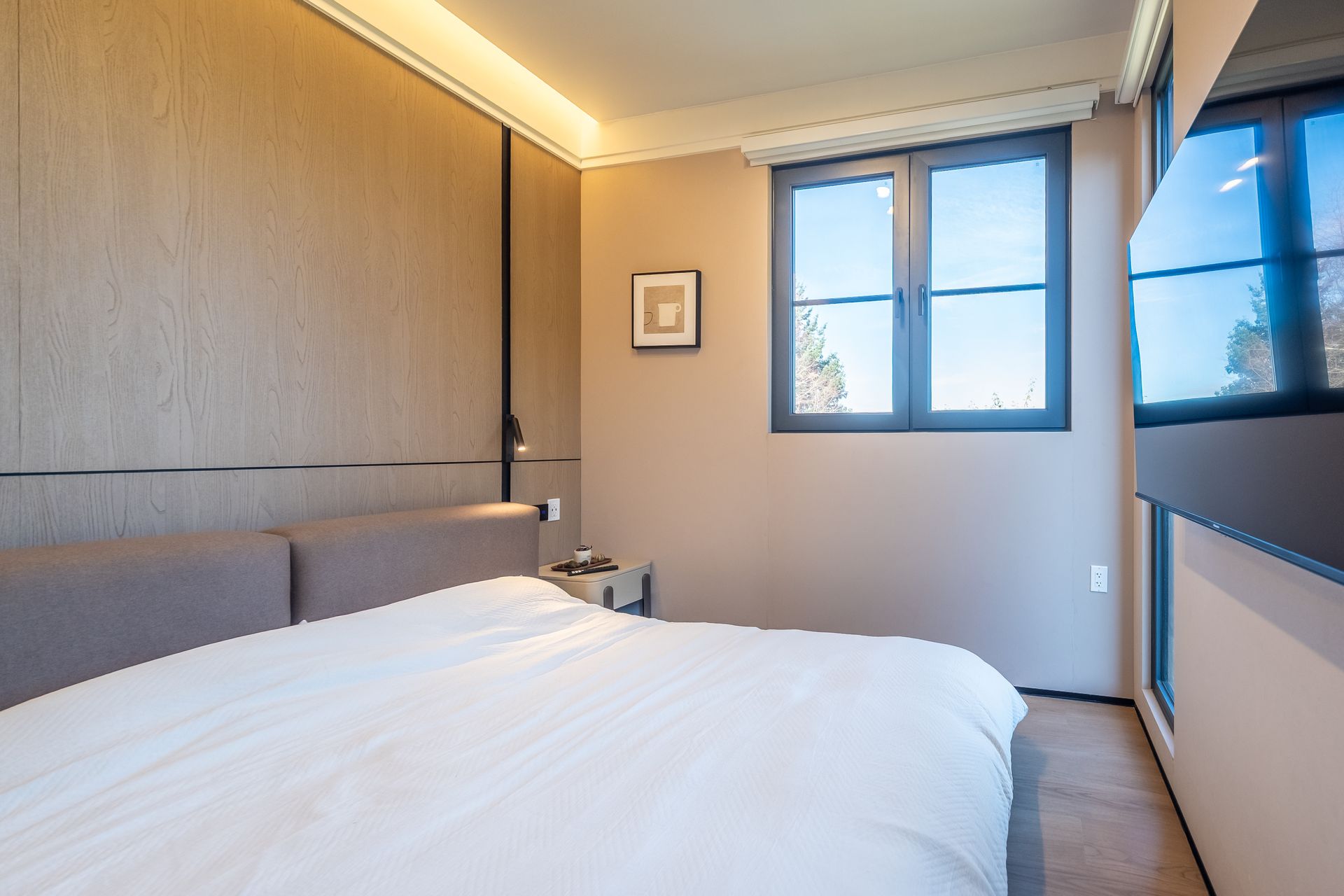

Bedroom

  • Vinyl bamboo composite finish wall boards.
  • All walls and ceilings finish throughout the room.
  • Two built-in reading lights in Solace master bedroom.
  • Floor to ceiling built-in closets:
  • LED sensor lights included.
  • Solid sliding doors.
  • Traditional rod and shelf design.
  • 6mm floating SPC plank floorings.
  • LED ambient lighting throughout the room.
  • Manual blinds for all the windows.
  • Mechanical switches for all the lighting control.
  • Standard plugs throughout the room and plugs with USB ports at selected locations.
  • Wood veneered interior swing door with privacy door hardware and magnetic door stop.

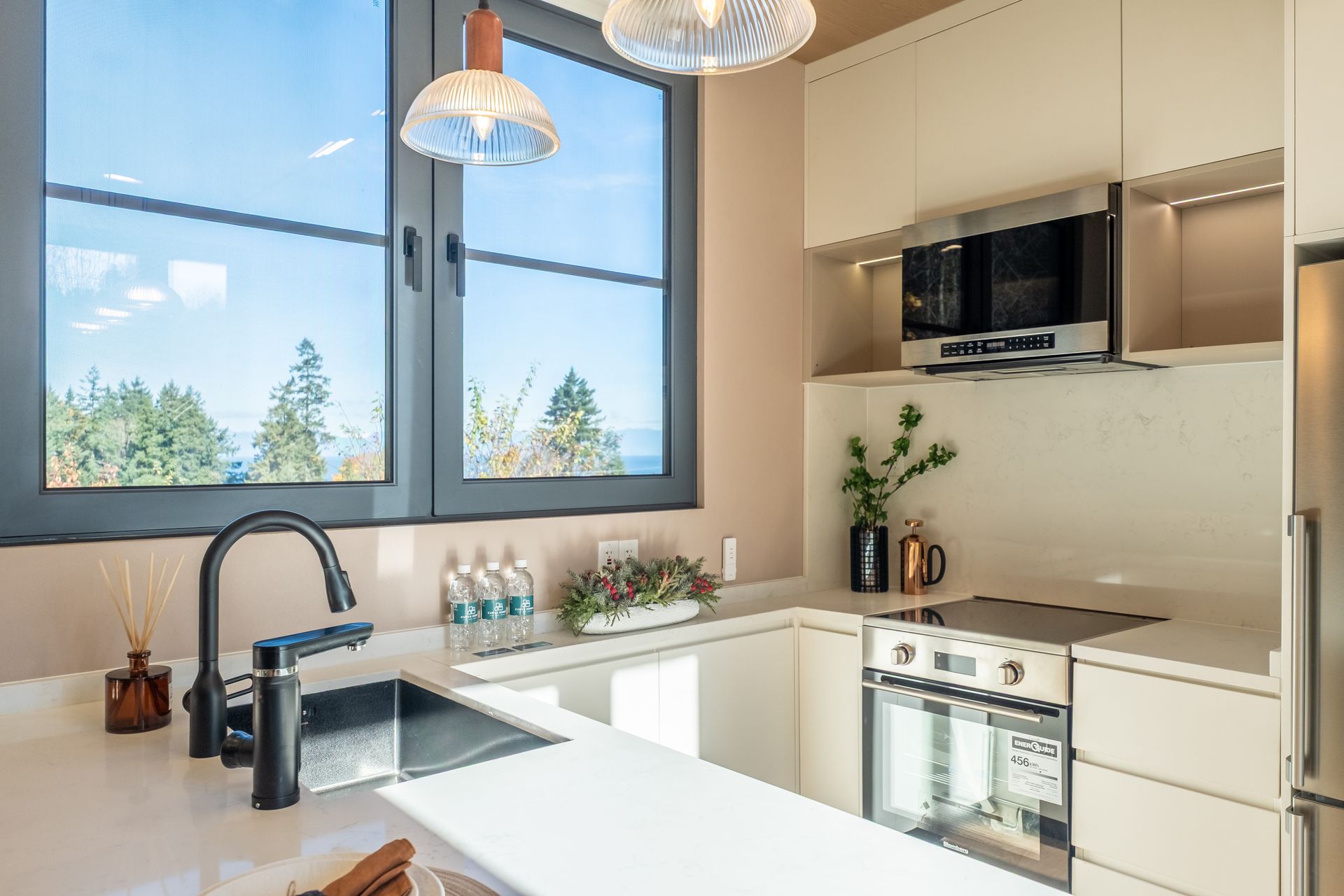

Kitchen

  • Stainless steel kitchen sink.
  • Full 2cm quartz countertops with waterfall edge on the island for Solace.
  • Matching 1cm quartz backsplash.
  • Therma-foil cabinets:
  • Soft-close doors and drawers.
  • Solid shaker style doors.
  • Over the countertop cabinet lights + above the floor cabinet lights.
  • Mechanical switches for all the lighting control.
  • Standard plugs throughout the room and plugs with USB ports at selected locations.
  • Appliance package included:
  • Supplier: Trail Appliances.
  • Warranty:

o 2-year extended warranty on all Blomberg appliances

o 1-year warranty on ventless LG washer and dryer.

  • Induction stove and oven: Blomberg
  • Overhead hood fan + microwave: Blomberg
  • Dishwasher: Blomberg
  • Fridge: Blomberg
  • All in one ventless washer and dryer: LG
A living room with wooden shelves and a flat screen tv
A living room with wooden shelves and a flat screen tv

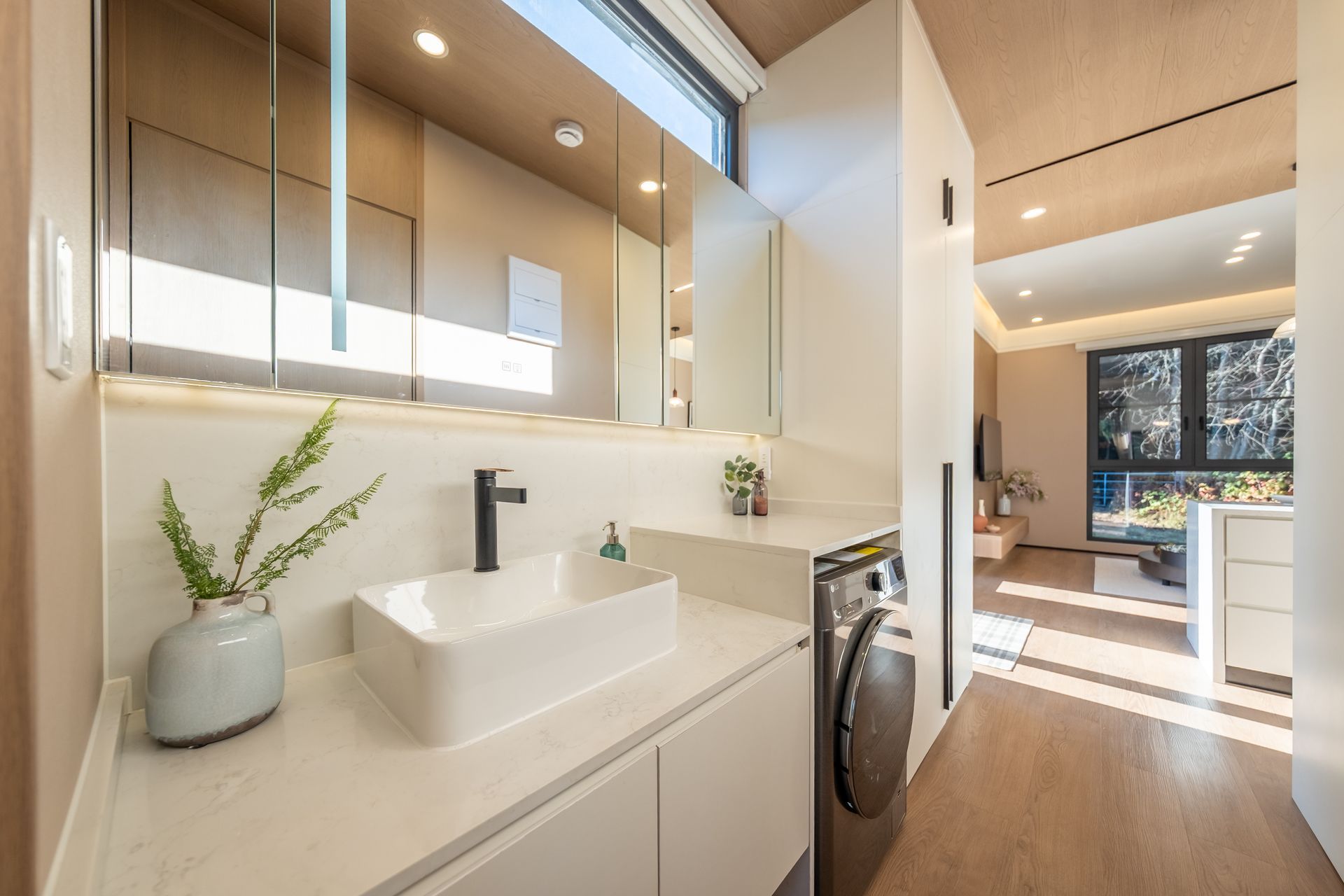

Bathroom & Vanity

  • Marble pattern 3mm SPC wall panels throughout.
  • 6mm floating vinyl plank flooring.
  • Stainless steel vanity faucet.

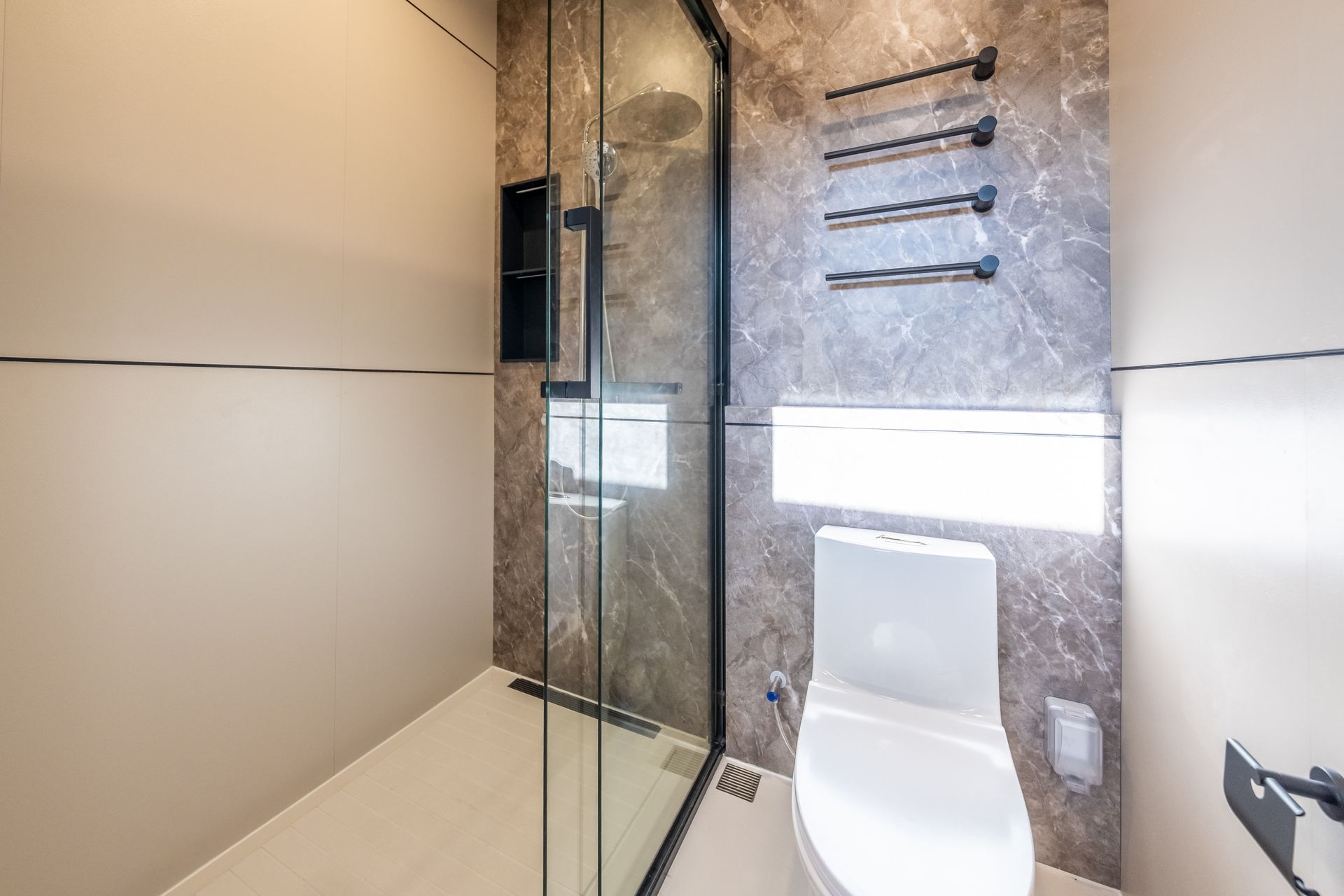

  • Shower:
  • Stone slab shower pan.
  • Inset shelf with aluminum shelf.
  • Shower bar + Overhead rainfall shower head.
  • Frameless tempered shower glass.
  • Inset aluminum shelf behind toilet with back lights.
  • Electric in-floor heating.
  • Pot lights above both shower and toilet area.
  • Quartz vanity countertop.
  • Therma-foil cabinets with soft-close hardware.
  • LED vanity smart mirror with storage.
  • Mechanical switches for all the lighting control.
  • Standard plugs throughout the room.

Add-Ons

  • Smart home system: all plugs and switches connect to WIFI and can be controlled via App.
  • Electric heated floor through the entire unit. Temperature can be adjusted from zone to zone individually.
  • Electric blinds.
  • Closet features:
  • Pull down rod
  • Specialized drawers
  • Pants hangers
  • Kitchen cabinet features:
  • Spice rack
  • Rotating shelves
  • Pan and pot organizer under the kitchen sink
  • Colour-matched built-in foldable table (Ember only).
  • Stereo sound system in the ceiling.
  • Movable magnetic plugs.
  • Smart toilet.
  • Water filtration system and instant hot drinking water dispenser.
  • Furniture package.
A living room with wooden shelves and a flat screen tv

UTILITIES & ACCESSORIES

  • 100 AMP 120/240 service panel.
  • Central heating and cooling (AC) with zone-control system.
  • Electric hot water tank: 40 Gal.
  • Heat Recovery Ventilator (HRV) system.

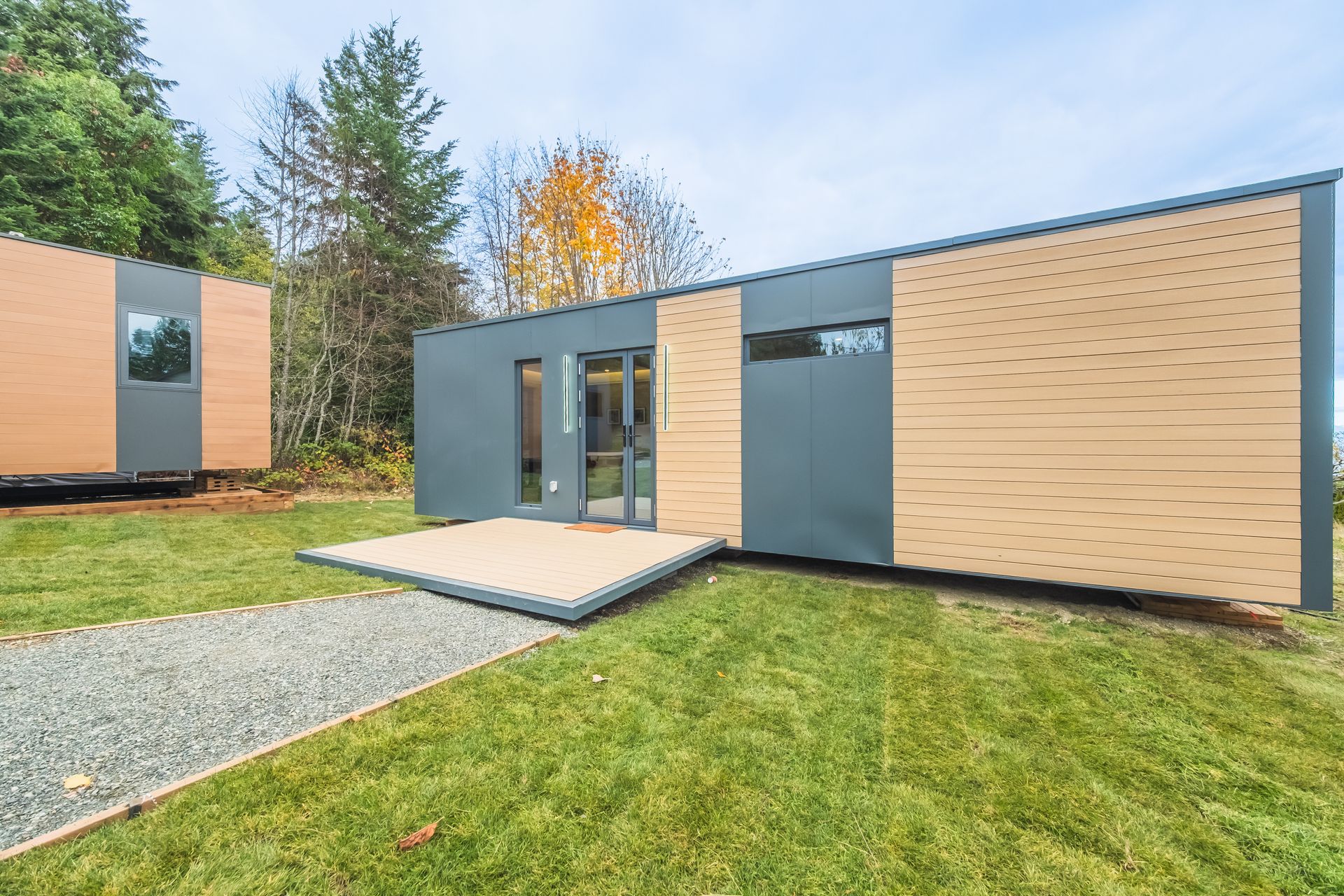

  • Modular deck included:
  • 10’ x 13’
  • HSS steel frame
  • Vinyl deck boards matching the exterior wood accent colour.
  • Front entry canopy included:
  • L 6’6’’ x D 3’3’’
  • HSS steel frame + transparent plastic sheet

Add-Ons:

  • Larger modular deck, available at:
  • D 10’ x L 19’6’’
  • D 10’ x L 26’
  • Larger front entry canopy, available at:
  • L 13’ x D 3’3’’
  • L 19’6’’ x D 3’3’’
  • Canopies above windows, available at:
  • D 2’, L Window Length
  • Solar panels on roof + power bank at bottom of the house.
  • EV charger

Metal frame structure of a building under construction inside a factory with a red crane.

WARRANTY

Cueva 2-5-10 New Home Warranty

All appliances come with manufactured warranty that can be claimed through Trail Appliances directly.

Interactive 360° Home Tour

Take an immersive look inside and experience every detail from every angle.

FOUNDATIONS & RAINWATER MANAGEMENT

  • CSA Z240.10.1-16 foundation standards.
  • 6 support points per home.
  • Approved foundation types: piles, piers, strip footings, concrete slab, or wood cribbing. Site specific conditions determine which is the best viable foundation option.
  • All site preparation will be completed by our contracting partners.
  • Rainwater management:
  • Black exterior gutter system running across the entire lower side of the roof.
  • 2 downspouts included.
